50 HP PLUS

Pragati Motors

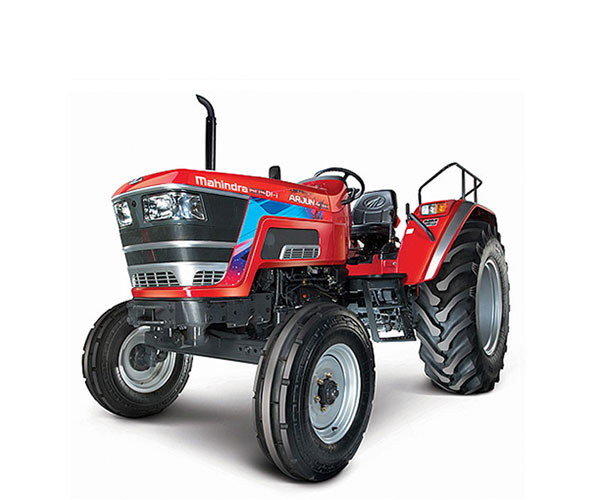

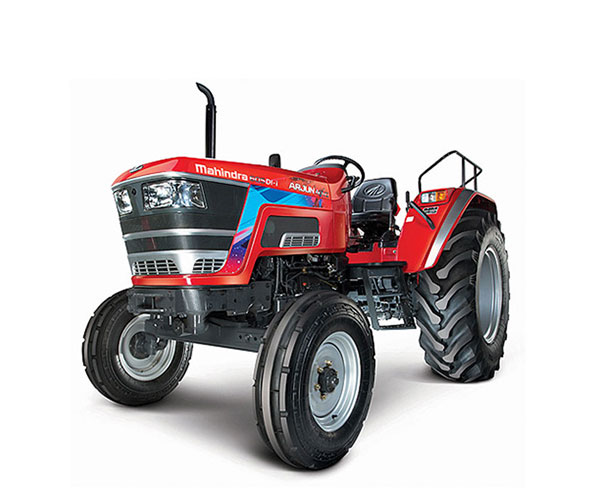

ARJUN NOVO 605 DI-i


specifications

No of Cylinder4
Capacity (cm3)3531
Engine Rated RPM2100 r/min
Transmission TypeMechanical, Synchromesh
No of Gears15 Forward + 3 Reverse
Brake TypeMechanical, Oil immersed multi disc brakes
Main Clutch Type & SizeDuty diaphragm type
Lift Capacity at Hitch, kg2200 kg
Steering TypePower steering
Fuel Tank 66 l
Wheel Base 2145 mm
Tyre 7.5X16 (8PR) + 16.9X28 (12PR)
Air Cleaner Dry type with clog indicator
Cooling Forced circulation of coolant
Length (mm)3660
Height (Till Exhaust Pipe) (mm)2130
Forward Speed (Minimum) 1.69 kmph
Forward Speed (Maximum)33.23 kmph
Reverse Speed (Minimum)3.18 kmph
Reverse Speed (Maximum)17.72 kmph
Main Clutch 306
PTO Clutch 280
PTO HP (hp)37.5 kW (50 HP)
PTO TypeSLIPTO, 540 + R/540 + 540E
PTO Speed540 r/min
Hydraulic Pump Flow (lpm)40

ARJUN NOVO 605 DI-PS


specifications

No of Cylinder4
Capacity (cm3)3531
Engine Rated RPM2100 r/min
Transmission TypeMechanical, Synchromesh
No of Gears15 Forward + 3 Reverse
Brake TypeMechanical, Oil immersed multi disc brakes
Main Clutch Type & SizeDuty diaphragm type
Lift Capacity at Hitch, kg2200 kg
Steering TypePower steering
Fuel Tank 66 l
Wheel Base 2145
Tyre 7.5X16 (8PR) + 14.9X28 (12PR)
Air Cleaner Dry type with clog indicator
Cooling Forced circulation of coolant
Length (mm)3630
Height (Till Exhaust Pipe) (mm)2100
Forward Speed (Minimum) 1.63 kmph
Forward Speed (Maximum)32.04 kmph
Reverse Speed (Minimum)3.09 kmph
Reverse Speed (Maximum)17.23 kmph
Main Clutch 306
PTO Clutch 280
PTO HP (hp)33.5 kW (44.93 HP)
PTO TypeSLIPTO, 540 + R/540 + 540E
PTO Speed540 r/min
Hydraulic Pump Flow (lpm)40

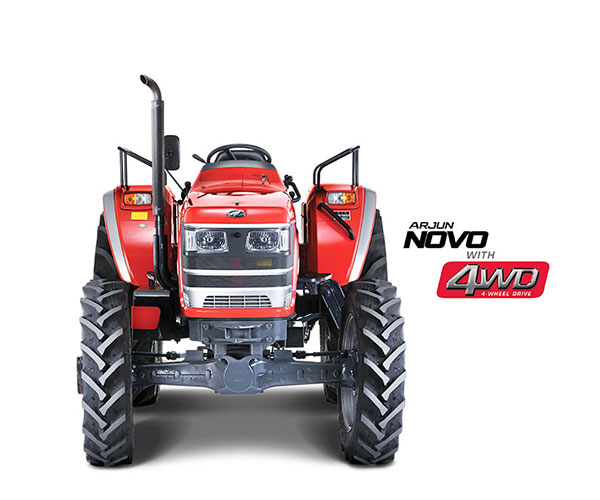

ARJUN NOVO 605 DI–i-4WD


specifications

No of Cylinder 4
Capacity (cm3) 3531
Engine Rated RPM 2100 r/min
Transmission Type Mechanical, Synchromesh
No of Gears 15 Forward + 15 Reverse
Brake Type Mechanical, Oil immersed multi disc brakes
Main Clutch Type & Size Dual diaphragm type
Lift Capacity at Hitch, kg 2200 kg
Steering Type Power steering
Fuel Tank 66 l
Wheel Base 2145
Tyre 9.5-24 (8PR) + 16.9-28 (12PR)
Air Cleaner Dry type with clog indicator
Cooling Forced circulation of coolant
Length (mm) 3660
Height (Till Exhaust Pipe) (mm) 2130
Forward Speed (Minimum) 1.71 km/h
Forward Speed (Maximum) 33.5 km/h
Reverse Speed (Minimum) 1.69 km/h
Reverse Speed (Maximum) 33.23 km/h
Main Clutch 306
PTO Clutch 280
PTO HP (hp) 37.8 kW (50.3 HP)
PTO Type SLIPTO, 540 + R/540 + 540E
PTO Speed 540r/min
Hydraulic Pump Flow (lpm) 40
Lift Capacity (kg) 2,200 kg
Brake Type Mechanical, oil immersed multi disc brakes
Steering Type Power steering
Tyre
Front 9.5 - 24 (8PR)
Rear 16.9 - 28 (12PR)

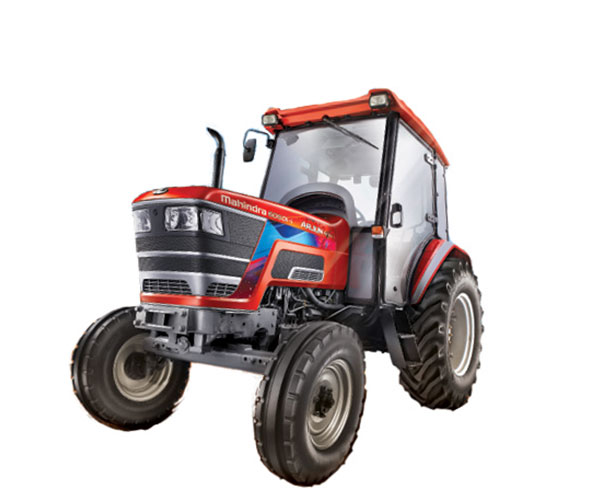

ARJUN NOVO 605 DI-i-WITH AC CABIN


specifications

Horsepower 42.5 kW (57 HP)
No.of Cylinders 4
Displacement (cm3) 3,531
Air Cleaner Dry Type with clog indicator
Rated RPM 2,100 r/min
Cooling System Forced Circulation of Coolant
Dimensions
Fuel Tank (Litres) 66 l
Length (mm) 3,660
Height (till exhaust pipe) (mm) 2,130
Wheelbase (mm) 2,145
Transmission
Transmission Type Mechnical, Synchromesh
No. of Speeds 15 Forward + 3 Reverse
Forward Speed (Minimum) 1.69km/h
Forward Speed (Maximum) 33.23km/h
Reverse Speed (Minimum) 3.18km/h
Reverse Speed (Maximum) 17.72km/h
Clutch Dual Diaphragm Type
Main Clutch 306
PTO Clutch 280
PTO HP (hp) 37.5 kW (50.3 HP)
PTO Type SLIPTO, 540+R/540+540E
PTO Speed 540 r/min
Hydraulics
Hydraulic Pump Flow (lpm) 42
Lift Capacity (kg) 2200 kh
Brakes & Steering
Brake Type Mechanical, oil immersed multi disc brakes
Steering Type Power steering
Tyre
Front 7.5 - 16 (8PR)
Rear 16.9 - 28 (12PR)

MAHINDRA ARJUN ULTRA 1 605 DI


specifications

Features Arjun 555 DI Arjun 605 DI
Engine
Engine Power (HP)37.3 kW (50 HP)42.5 kW (57 HP)
Max. Torque176 Nm207 Nm
TRANSMISSION
Number of Gears8+28+2
Shift TypeCenter/SideCenter/Side
Lift Capacity1650 kg1650 kg
TYRE
Front6.50 x16/7.50 x 167.50 x16
Rear14.9 x28/16.9 x 28 16.9 x 28
Aux. ValveYES*YES*
SPEED
ForwardMax.:30.9km/h
Min.:3.1km/h
(2.6km/h optional)
Max.:31km/h
Min.:2.8km/h
(2.3km/h optional)
