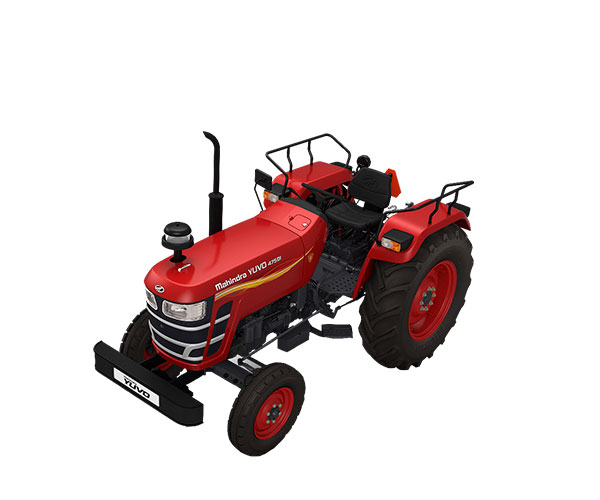

MAHINDRA YUVO 475 DI
specifications
| Engine | |
| HP | 33.6 kW (45 HP) |
| No of Cylinder | 4 |
| Displacement, (cm3) | 2979 |
| Air Cleaner | Dry type 6" |
| Rated, rpm | 2000 r/min |
| Max Torque, Nm | 178.68 Nm |
| Transmission | |
| Transmission type | Full Constant mesh |
| No of Gears | 12 F + 3 R |
| Brake Type | Oil Immersed Brakes |
| Main Clutch type | Single clutch dry friction plate (optional:-Dual clutch-CRPTO) |
| Ground speed, kmph | 1.45 to 30.61 km/h |
| Reverse speed, kmph | 2.05 / 5.8 /11.2 km/h |
| PTO | |
| Max PTO HP | 30.6 kW (41.1±5% HP) |
| PTO engine, rpm | 540 @ 1510 r/min |
| Hydraulics | |
| Lift capacity at hitch, kg | 1500 kg |
| Steering | Power |
| Fuel tank capacity, litre | 60 litre |
| Dimensions | |
| Wheelbase, mm | 1925 |
| Standard tractor weight, kg | 2020 kg |
| Tyre | |
| Front tyre | 6 x 16 |
| Rear tyre | 13.6 x 28(Optional:-14.9 x 28) |

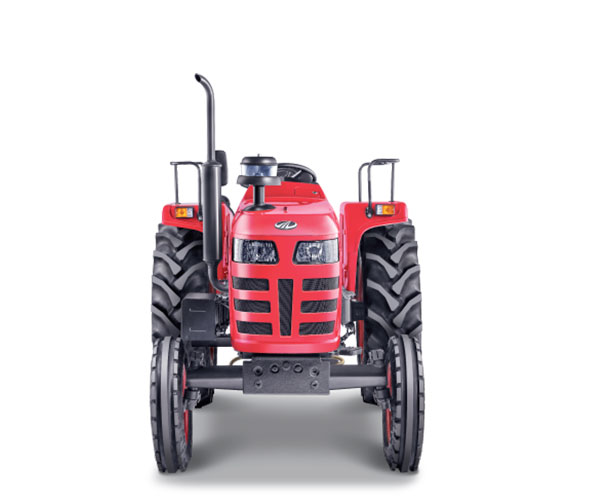

MAHINDRA YUVO 575 DI
specifications
| Engine | |
| HP | 33.6 kW (45 HP) |
| No of Cylinder | 4 |
| Displacement, (cm3) | 2979 |
| Air Cleaner | Dry type 6" |
| Rated, rpm | 2000 r/min |
| Max Torque, Nm | 178.68 Nm |
| Transmission | |
| Transmission type | Full Constant mesh |
| No of Gears | 12 F + 3 R |
| Brake Type | Oil Immersed Brakes |
| Main Clutch type | Single clutch dry friction plate (optional:-Dual clutch-CRPTO) |
| Ground speed, kmph | 1.45 to 30.61 km/h |
| Reverse speed, kmph | 2.05 / 5.8 /11.2 km/h |
| PTO | |
| Max PTO HP | 30.6 kW (41.1±5% HP) |
| PTO r engine, rpm | 540 @ 1510 r/min |
| Hydraulics | |
| Lift capacity at hitch, kg | 1500 kg |
| Steering | Power |
| Fuel tank capacity, litre | 60 litre |
| Dimensions | |
| Wheelbase, mm | 1925 |
| Standard tractor weight, kg | 2020 kg |
| Tyre | |
| Front tyre | 6 x 16 |
| Rear tyre | 13.6 x 28(Optional:-14.9 x 28) |

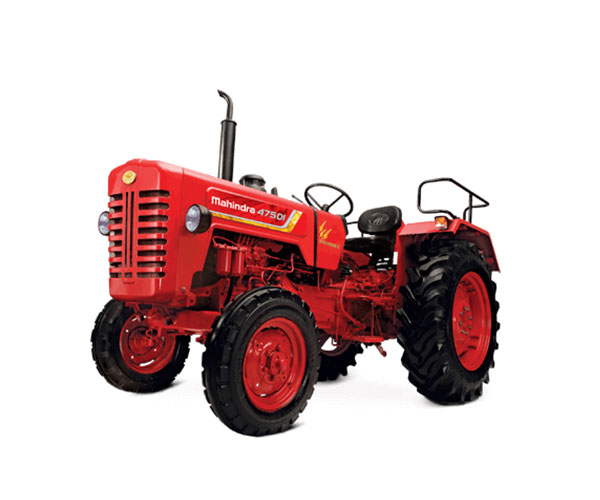

MAHINDRA 475 DI
specifications
| No of Cylinder | 4 |
| Capacity, (cm3) | 2730 |
| Engine Rated RPM | 1900 r/min |
| Transmission Type | Partial Constant Mesh Transmission (Optional-Sliding Mesh) |
| No of Gears | 8 Forward + 2 Reverse |
| Brake Type | Oil brakes (optional) |
| Main Clutch Type & Size | Dual (optional) |
| Lift Capacity at Hitch, kg | 1500 kg |
| Steering Type | Power steering (optional) |
| Fuel Tank Capacity, litre | 48 l |
| Wheel Base MM | 1945 |
| Tyre , Front + Rear | 6.00X16 + 13.6X28 & 12.4 (optional) |

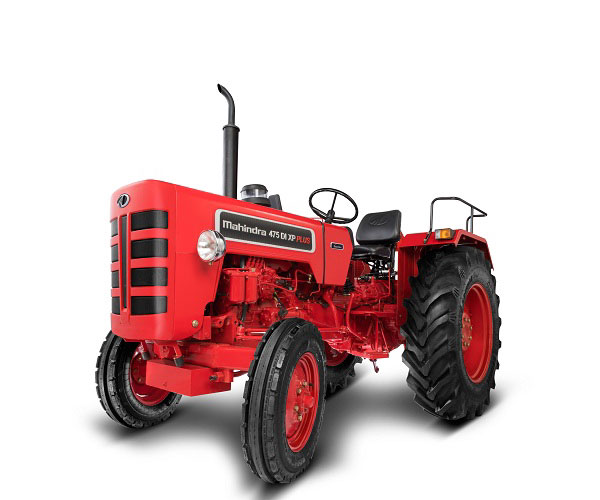

MAHINDRA 475 DI XP PLUS
specifications
| Features | Mahindra 475 DI XP PLUS |
|---|---|
| Engine ( kW ) | 32.81 kw ( 44 HP ) |
| No.of Cylinders | 4 |
| Max Torque (Nm) | 185 Nm |
| Torque at Maximum Power (Nm) Rated Torque | 157 Nm |
| Tyre | 13.6 X 28 |
| Maximum PTO (kW) | 29.08 ( 39 HP ) |
| Transmission Type | Constant Mesh |
| No of Gears | 8F+2 R |
| Hydraulics Lift capacity (kg) | 1500 kg |
| Steering | Manual / Power steering - Available |
| Clutch | Single / Dual Clutch -Available |
| Mobile Charging | |
| GROUND SPEEDS | |
| Forward(km/h) | 2.9 to 29.9 km/h |
| Reverse(km/h) | 4.1 & 11.9 km/h |
| PTO speed (RPM) | 540 @ 1890 r/min |
| Wheelbase (mm) | 1960 |
| Weight(Kg) | 1825 |

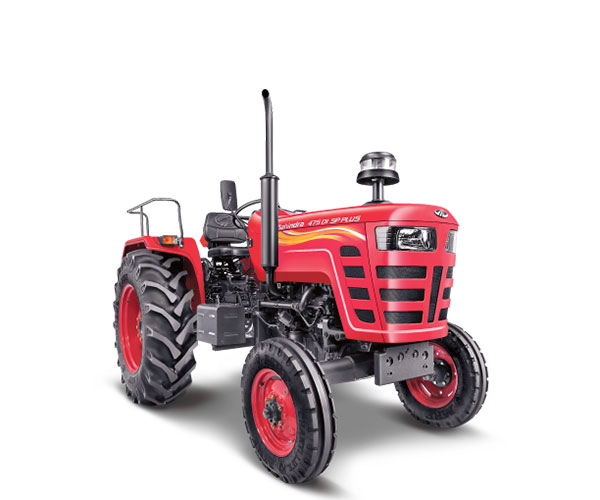

MAHINDRA 475 DI SP PLUS
specifications
| Features | Mahindra 475 DI SP PLUS |
|---|---|
| Engine Power kW (HP) | 32.8kW (44 HP) |
| No. of Cylinders | 4 |
| Displacement (cm3) | 2979 |
| Max Torque (Nm) | 172 |
| Tyre | 13.6 x 28 |
| Maximum PTO kW (HP) | 29.08kW (39.0 HP) |
| Transmission Type | Constant Mesh |
| No of Gears | 8F + 2R |
| Final Reduction | Bull Pinion |
| Type of Clutch | Single (std) Dual (opt) |
| Hydraulics Lifting capacity (kg) | 1500 |

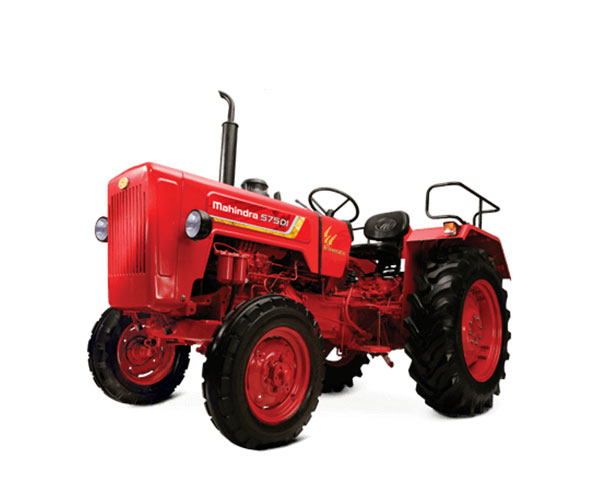

MAHINDRA 575 DI
specifications
| No of Cylinder | 4 |
| Capacity, (cm3) | 2730 |
| Engine Rated RPM | 1900 r/min |
| Transmission Type | Partial Constant Mesh Transmission (Optional-Sliding Mesh) |
| No of Gears | 8 Forward + 2 Reverse |
| Brake Type | Oil brakes (optional) |
| Main Clutch Type & Size | Dual (optional) |
| Lift Capacity at Hitch, kg | 1600 kg |
| Steering Type | Power steering (optional) |
| Fuel Tank Capacity, litre | 47.5 l |
| Wheel Base MM | 1945 |
| Tyre , Front + Rear | 6.00X16 + 13.6X28/ 14.9(optional) |
MAHINDRA 575 DI SP PLUS
specifications
| Features | Mahindra 575 DI SP PLUS |
|---|---|
| Engine Power kW (HP) | 35.0kW (47 HP) |
| No. of Cylinders | 4 |
| Displacement (cm3) | 2979 |
| Max Torque (Nm) | 178.6 |
| Tyre | 13.6x28 /OPT 14.9X28 |
| Maximum PTO kW (HP) | 31.31kW (42.0 HP) |
| Transmission Type | Constant Mesh |
| No of Gears | 8F + 2 R |
| Final Reduction | Bull Pinion |
| Type of Clutch | Single (std) Dual with RCRPTO (opt) |
| Hydraulics Lifting capacity (kg) | 1500 |

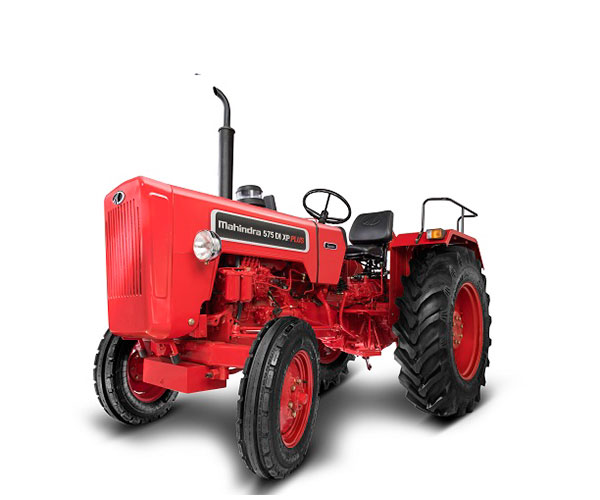

MAHINDRA 575 DI XP PLUS
specifications
| Features | Mahindra 575 DI XP PLUS |
|---|---|
| Engine ( kW ) | 35.04 kw ( 47 HP ) |
| No.of Cylinders | 4 | Max Torque (Nm) | 192 Nm |
| Torque at Maximum Power (Nm) Rated Torque | 167 Nm |
| Tyre | 14.9 x 28 |
| Maximum PTO (kW) | 31.31 ( 42 HP ) |
| Transmission Type | Constant Mesh |
| No of Gears | 8F+2 R |
| Hydraulics Lift capacity (kg) | 1500 kg |
| Steering | Manual / Power steering – Available Clutch |
| Clutch | Single / Dual Clutch -Available |
| Mobile Charging | ✔ |
| GROUND SPEEDS | |
| Forward(km/h) | 3.09 to 31.25 km/h |
| Reverse(km/h) | 4.3 & 12.4 km/h |
| PTO speed (RPM) | 540 @ 1890 r/min |
| Wheelbase (mm) | 1960 |
| Weight(Kg) | 1890 |

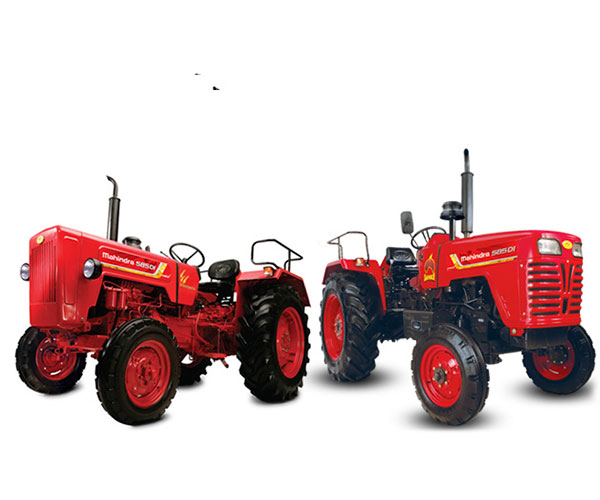

MAHINDRA 585 DI
specifications
| Special Features | 585 DI Bhoomiputra | 585 DI Sarpanch |
|---|---|---|
| Engine | ||
| Horse Power Type HP | 50 HP | 50 HP |
| Number of Cylinders | 4 | 4 |
| Rated Engine Speed (rpm) | 2100 | 2100 |
| Air cleaner | 3 Stage Oil bath type with Pre-Cleaner | Cyclonic Pre-Cleaner with oil bath and paper filter twin combination |
| Cooling system | Water Cooled | Water Cooled |
| Transmission | ||
| Type | Partial Constant Mesh | Partial Constant Mesh/ Full Constant Mesh (Optional) |
| Number of Speeds | 8F+2R | 8F+2R |
| Speed Forward kmph | 2.9 to 30.9 | 2.9 to 30.9 |
| Speed Reverse kmph | 4.05 to 11.9 | 4.05 to 11.9 |
| Clutch Type | Heavy Duty Diaphragm type - 280 mm (Dual clutch optional) | Heavy Duty Diaphragm type - 280 mm |
| PTO | 6 Splines, 540 rpm | 6 Splines, 540 rpm |
| Brakes | ||
| Service Brakes | Dry Disk Brakes (standard)/Oil Immersed Brakes (optional) | Dry Disk Brakes (standard)/Oil Immersed Brakes (optional) |
| Parking Brakes | Head Leaver excluded- Tongle link Locking Mechanism | Head Leaver excluded- Tongle link Locking Mechanism |
| Steering | Mechanical Re-Circulating ball and nut type/Hydrostatic Type (optional) | Mechanical Re-Circulating ball and nut type/Hydrostatic Type (optional) |
| Hydraulics | ||
| Type | CAT II inbuilt external check chain | CAT II inbuilt external check chain |
| Loading Capacity KG | 1640 | 1640 |
| Tractor Dimensions | ||
| Diesel Tank Capacity litre | 49 | 56 |
| Maximum Length mm | 3520 | 3380 |
| Height up to Exhaust Pipe mm | 2180 | 2165 |
| Wheel Base mm | 1970 | 1970 |
| Operating Weight kg | 2100 | 2165 |
| Tyres | ||
| Front | 6.0 - 16 | 6.0 - 16 |
| Back | 14.9 - 28 | 14.9 - 28 (Standard) |

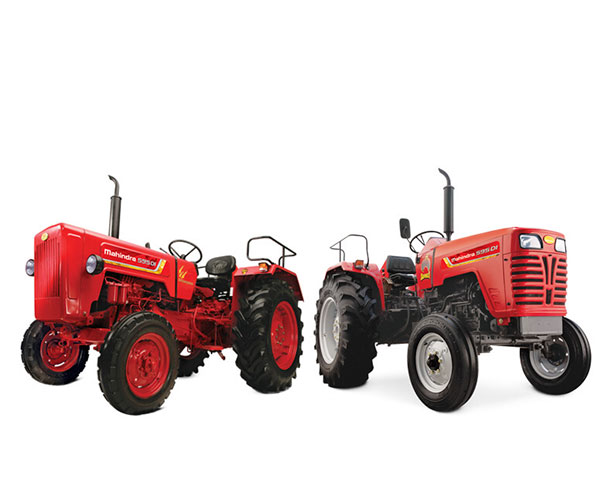

MAHINDRA 595 DI
specifications
| No of Cylinder | 4 |
| Capacity, (cm3) | 2523 |
| Engine Rated RPM | 2100 r/min |
| Transmission Type | Partial Constant Mesh Transmission (Optional-Sliding Mesh) |
| No of Gears | 8 Forward + 2 Reverse |
| Brake Type | Oil brakes |
| Main Clutch Type & Size | Dual (optional) |
| Lift Capacity at Hitch, kg | 1600 kg |
| Steering Type | Power steering (optional) |
| Fuel Tank Capacity, litre | 56 l |
| Wheel Base MM | 1934 |
| Tyre , Front + Rear | 6.00X16 + 14.9X28 |

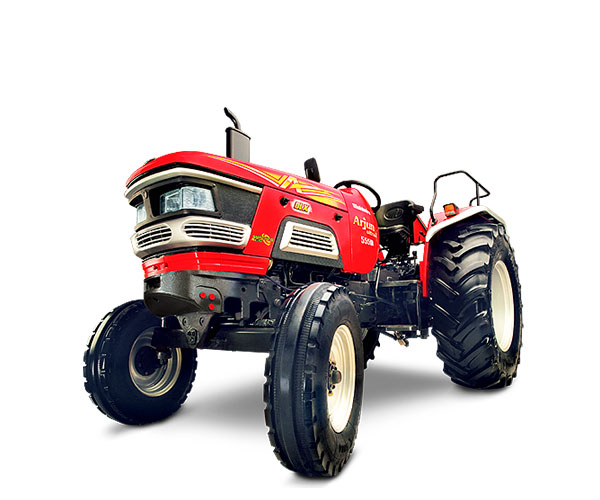

MAHINDRA ARJUN ULTRA -1 555 DI
specifications
| No of Cylinder | 4 |
| Capacity, (cm3) | 3054 |
| Engine Rated RPM | 2100 r/min |
| Transmission Type | FCM (Optional Partial Syncromesh) |
| No of Gears | 8 Forward + 2Reverse |
| Brake Type | Oil Brakes |
| Main Clutch Type & Size | Single (Optional Double) |
| Lift Capacity at Hitch, kg | 1800 kg |
| Steering Type | Power steering / Mechanical (Optional) |
| Fuel Tank Capacity, litre | 65 l |
| Wheel Base, MM | 2125 |
| Tyre , Front/Rear | 6.00-16/14.9-28; (7.5 X 16 / 16.9 X 28 Optional) |

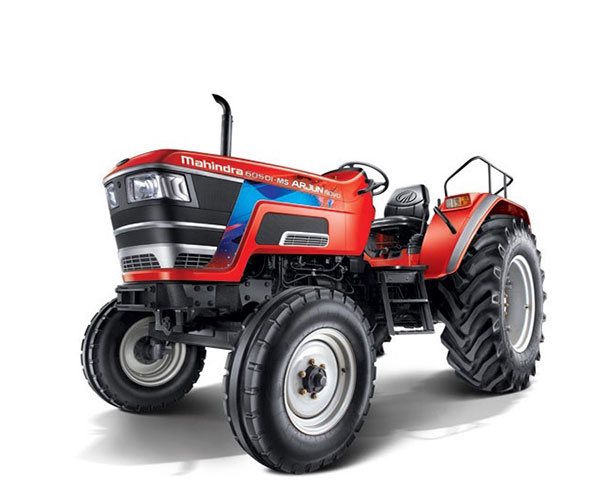

ARJUN NOVO 605 DI-MS
specifications
| Engine | |
| Horse Power Category | 37.2 kW (49.9 HP) |
| Cylinder capacity | 4 |
| Displacement (cm3) | 3192 |
| Rated RPM | 2100 r/min |
| Air cleaner | Clog indicator with dry type |
| Cooling system | Forced circulation of coolant |
| Transmission | |
| Type | Mechanical synchromesh |
| No. of Speeds | 15 Forward + 3 Reverse |
| Forward speed (min) | 1.63/1.69(km/h) |
| Forward speed (max) | 32.04/33.23 (km/h) |
| Reverse speed (min) | 3.09/3.18 (km/h) |
| Reverse speed (max) | 17.23/17.72 (km/h) |
| Clutch | Dual diaghragm type |
| Main clutch | 306 |
| PTO clutch | 280 |
| PTO | |
| PTO Hp | 32.4 kW (43.5 HP) |
| PTO Type | SLIPTO |
| PTO Speed | 540+R/ 540+540E r/min |
| Brakes | mechanical oil immersed multi disk brakes |
| Steering | Power steering |
| Hydraulics | |
| Lift capacity | 1800 kg |
| Pump flow | 37 |
| Dimensions | |
| Fuel tank capacity | 60 l |
| Length | 3660 |
| Height | 2100/2130 |
| wheel base | 2145/2175 |
| Tyre | |
| Front | 7.5-16 (8 PR ) |
| Back | 14.9-28 (12 PR) |
MAHINDRA YUVO 575 DI 4WD
specifications
| Features | Mahindra Yuvo 575DI 4WD |
|---|---|
| Engine (HP) | 33.6 kW (45 HP) |
| No. of Gears | 12 + 3 |
| Type of Shift | Side |
| Reduction Drive | Planetary |
| 4WD Drive Line | Center |
| Brakes | OIB |
| Clutch | Single Clutch / Dual Clutch (Optional) |
| PTO HP | 30.6 kW (41.1 HP) |
| PTO | Single / Reverse (Optional) |
| PTO RPM | 540 @1810 r/min |
| Front Axle | 4WD Drop Down Axle |
| Wheel base (mm) | 1925 |
| Steering Type | Power Steering |
| Front Tyres | 8 x 18 |
| Rear Tyres | 13.6 x 28 |
| Ground Clearance (mm) | 350 |
| Tractor Weight (kg) | 2085 |
| Front Weight (kg) | 825 |
| Rear Weight (kg) | 1260 |
